Overhead Bundle Twist Service Drop Cable Quadruplex IEC60502-2, BS 6622, NFC 33226, Etc.

CN Cable Group Co., Ltd.

Overhead Bundle Twist Service Drop Cable Quadruplex IEC60502-2, BS 6622, NFC 33226, Etc.

Place of Origin : Henan, China (Mainland)

Brand Name : CN

Model Number : ABC cable

Price : US $1-50 / Meters | 1000 Meter/Meters (Min. Order)

MOQ : 1000 Meter/M

Insulation Material : XLPE

Type : Low Voltage

Application : Overhead

Conductor Material : Aluminum

Jacket : PVC

Product name : Overhead bundle twist service drop wire quadruplex abc cable

Rated voltage : 0.6/1KV

Conductor : Al/Al Alloy/Cu

Core : 2,3,4,5,6,

Insulation : XLPE/PVC/PE

Certificate : ISO9001/ISO14001

Standard : IEC60502-2, BS 6622, NFC 33226, etc.

Package : Wooden Reel, Iron-wooden Reel, Steel Reel

Color : Black

Contact Now

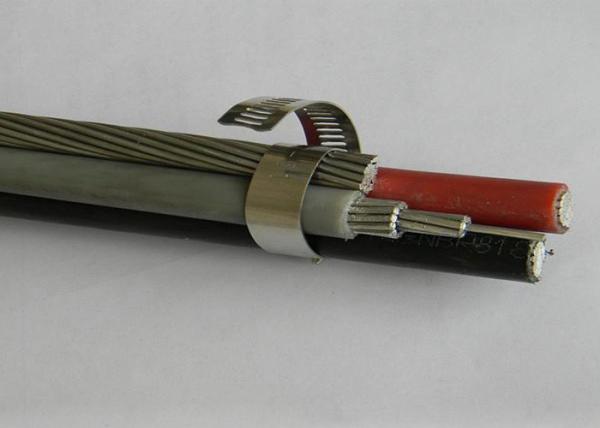

Overhead bundle twist service drop wire quadruplex abc cable

Product Description

Overhead Bundle Twist Service Drop Cable Quadruplex IEC60502-2, BS 6622, NFC 33226, Etc.

Application:

The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃

Applicable Standard:

IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474

Cable Structure:

Conductor: Al/Al Alloy/Cu

Insulation: XLPE/PE/PVC

AAC Conductor Supported Service Drop Cable- ICEA S-76-474

Code Name Size Al Phase Core AAAC Conductor Rated Strength Approx. Overall Dia. Approx. Weight
Cross-section Area Str. No. Dia.

Insulation Nominal

Thickness

Cross-section Area Str. No. Dia.
AWG/MCM mm2 No.s mm mm mm2 No.s mm KN mm kg/km
DUPLEX
Collie 1X6+6AWG 13.3 7 4.65 1.14 13.30 7 4.68 2.5 11.6 92.0
Spaniel 1X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 13.8 138.3
Doberman 1X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6.0 16.8 211.2
Malemute 1X1/0+1/0AWG 53.5 19 9.2 1.52 53.51 7 9.36 8.8 21.6 339.9
TRIPLEX
Patella 2X6+6AWG 13.3 7 4.65 1.14 13.30 7 4.68 2.5 13.3 149
Oyster 2X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 15.6 221
Clam 2X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6.0 18.9 334
Murex 2X1/0+1/0AWG 53.49 7 9.2 1.52 53.51 7 9.36 8.8 24.2 538
Nassa 2X2/0+2/0AWG 67.43 7 10.3 1.52 67.44 7 10.5 11.2 26.6 663
Melita 2X3/0+3/0AWG 85.01 19 11.6 1.52 85.03 7 11.79 14.7 29.4 820
Portunus 2X4/0+4/0AWG 107.2 19 13 1.52 107.20 7 13.26 17.9 32.5 1017
Nannynose 2X336.4+336.4MCM 170.45 19 16.56 2.03 170.46 19 16.9 27.3 41.7 1631
QUADRUPLEX
Pinto 3X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 18 302
Mustang 3X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6.0 21.6 454
Criollo 3X1/0+1/0AWG 53.51 19 9.2 1.52 53.51 7 9.36 8.8 27.8 734
Percheron 3X2/0+2/0AWG 67.44 19 10.3 1.52 67.44 7 10.5 11.2 30.4 902
Hanoverian 3X3/0G+3/0AWG 85.03 19 11.6 1.52 85.03 7 11.79 14.7 33.6 1113
Oldenburg 3X4/0+4/0AWG 107.20 19 13 1.52 107.20 7 13.26 17.9 37.0 1377
Lippizaner 3X336.4+336.4MCM 170.46 19 16.56 2.03 170.46 19 16.9 27.3 47.5 2212
